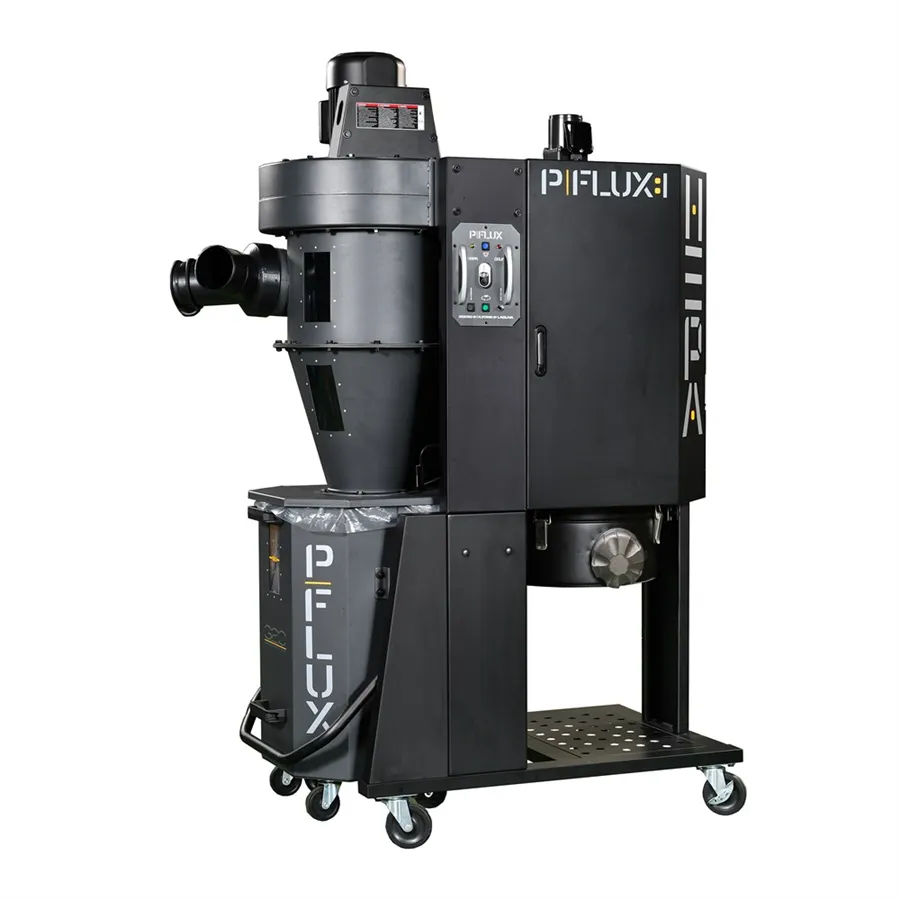

LAGUNA PFlux 1 Cyclone Spånsug

High-performance Collector from the IGM Laguna Flux Range.
• Separate motor for automatic HEPA filter cleaning
• Efficient cyclone technology with two-stage filtration.
• HEPA Filter with filtration of 99,2 % @ 0,4 microns.
• Sound dampening wings protecting the filter for high comfort.
• Dust container with an optical full capacity indicator.
• Dust drum with vacuum fixation of the waste bag.
• LED and audible indication of filter clogging.
• LED and audible indication of drum container full capacity.
• LED lighting in the waste container for visual check of filling.
• Castor wheels on the extractor as well as the dust bin.
• Remote control

PFlux1 is a high-performance cyclone extractor from the IGM Laguna Flux range, guaranteeing unrivalled extraction performance, high comfort and maximum extraction efficiency. The high-efficiency HEPA filter is equipped with a separate motor for automatic filter cleaning that starts every 10 seconds, ensuring maximum comfort and always high performance without loss.

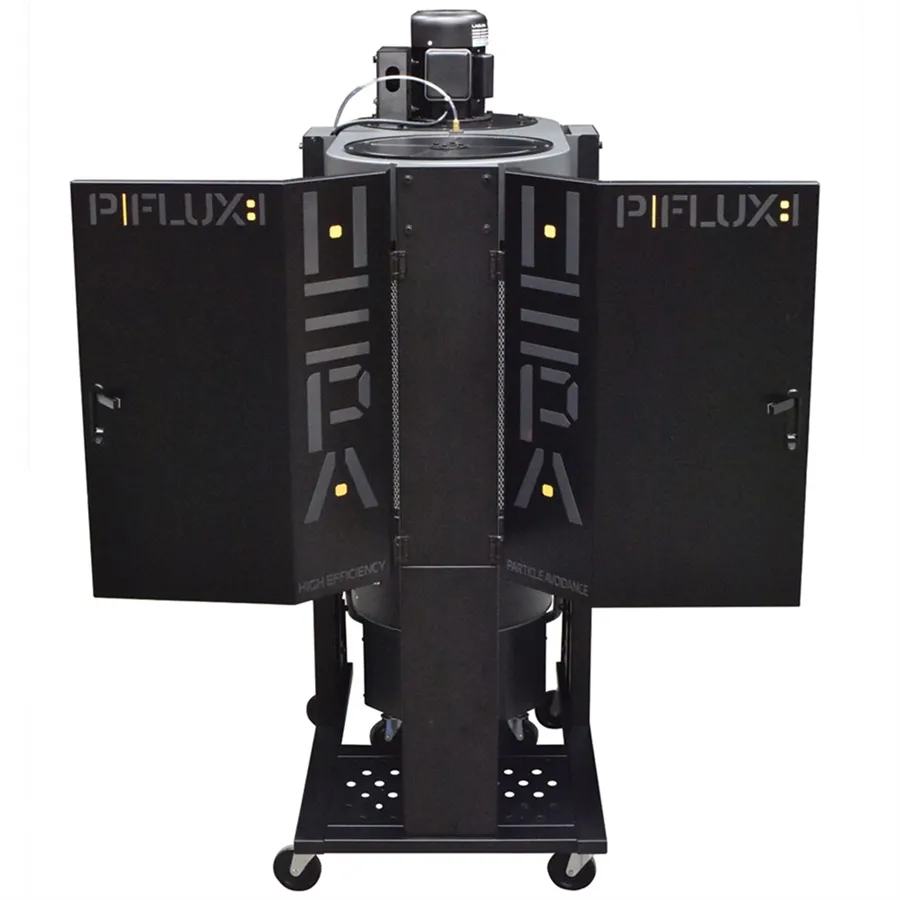

Cleaning can also be started manually by pressing a button on the machine’s control panel. Wings protecting the filter are fitted with sound dampening foam that effectively reduces noise.

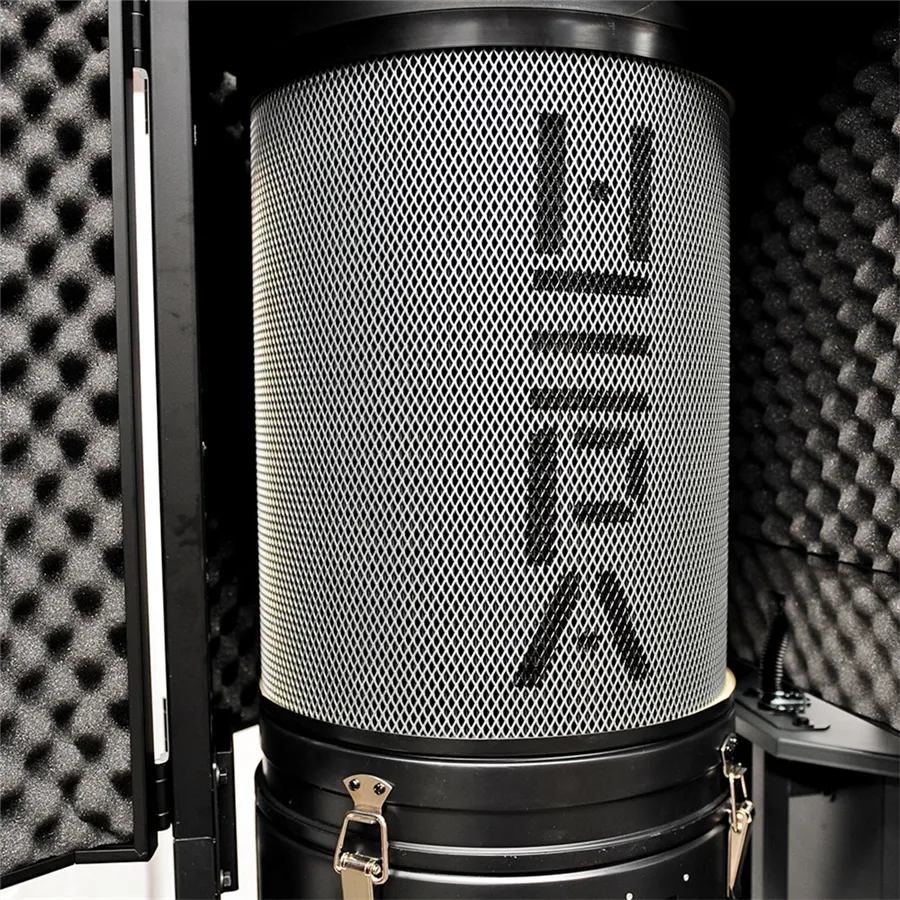

What is a HEPA filter and how it works
The HEPA is a highly efficient particle filter with a 99,2 % filtration @ 0,4 microns. Regular filters are usually able to filter only 1-2 microns.
The filter is made from fiberglass and is folded multiple times to improve filtration. The securely affixed microfilter does not stand in the way of fluent airflow which enhances the performance of the filtration system. If the filter were only one layer, the efficiency would be zero. The folded design allows it to contain the smallest dust particles and thus filter the air in your wood shop.

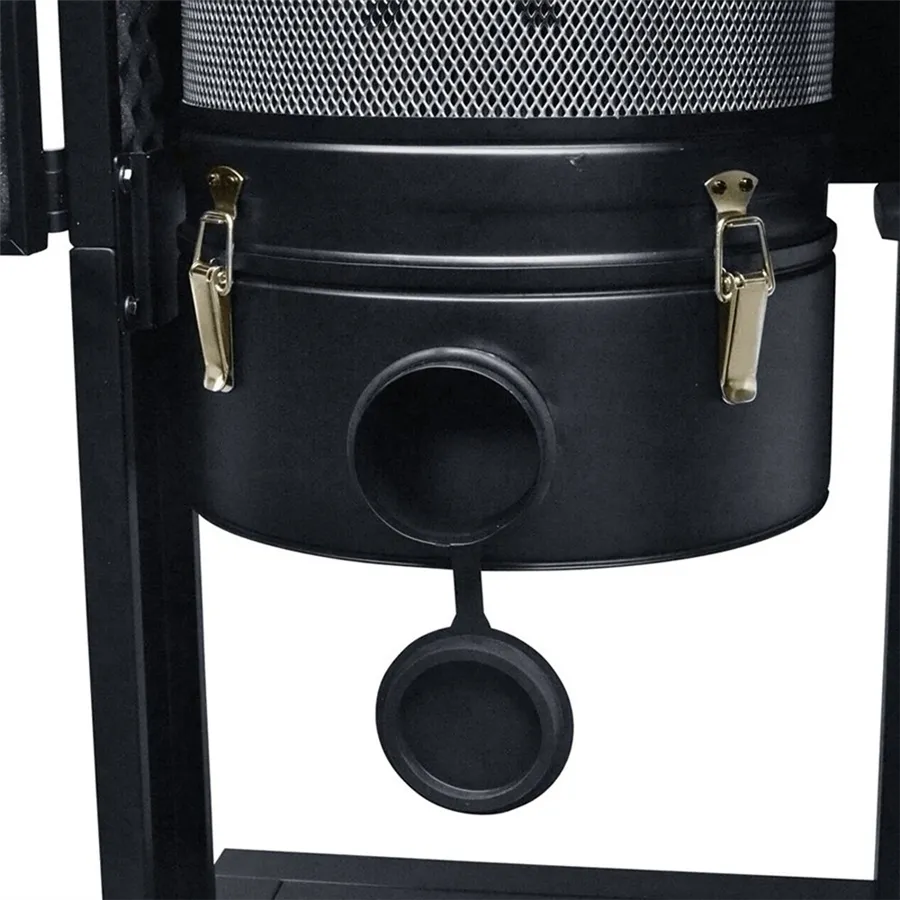

PFlux1 is fitted with a clogging indicator signalled by a LED light on the control panel. You can create a vacuum in the HEPA by connecting the main container with the microfiltration cap using a hose, this technique cleans the insides of the machine. Make your maintenance more efficient by blowing out the filter from the outside.

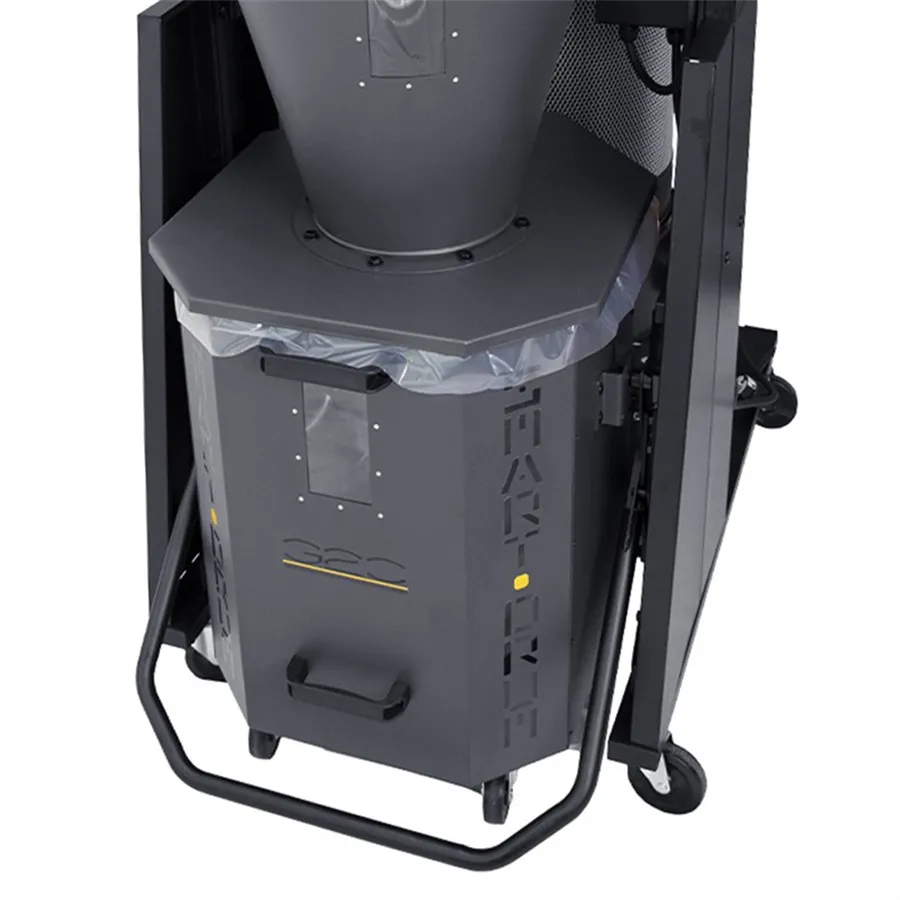

Clever waste drum design
Emptying the waste drum has never been easier. Clever lifting mechanism lifts up the bin with one pull on the lever. Lifting the handle sets down the container. Pushing the lever effectively lifts the drum and seals it against the drum lid. This lifts the container to the extractor and the whole machine is easy to move around the wood shop or used with a floor gulper. The container with a waste drum is fitted with castor wheels for easy movement.

Cyclone system
Two-step cyclone filtration system offers far better performance than one step extractors. Larger waste is separated into the waste compartment before it reaches the second phase of filtration. This system secures constant suction and great performance of the unit.

Comes partially disassembled in a cardboard box. Assembly time is approximately 4-5 hours (2 people recommended).

• Type: PFlux1
• Rating: Professional
• Power Output (230V): 1100 W
• Airflow: 1786 m3/hod.
• Noise Level: 70 dB(A) @ 3m
• Drum Collection Capacity: 95 l
• Drum Collection Bag Size: 1090 x 810 mm
• Max. Pressure: 2514 Pa
• Filtration Efficiency: 99.2 % @ 0,4 microns
• Inlet Diameters: 1 x 150 mm or 2 x 100 mm
• Shipping Dimensions: 1150 x 760 x 1350 mm
• Length x Width x Height: 1168 x 610 x 1753 mm
• Shipping Weight: 155 kg
• Weight: 122 kg

Supplied with:
• Remote Control
• 1x Drum Collection Bag
• HEPA Filter
