Robust bandsaw for professional woodworking with a handy cutting height and the strongest motor in the Laguna series.
• Foot pedal brake quickly stops the belt.
• Ceramic guides.
• Balanced cast-iron wheels.
• Strong robust frame.
• Tensioning lever on the back of the saw.
• Precise and smooth height adjustment up to 410 mm.
• Robust adjustable fence.
• Table tilt -6° to + 45°.
• Lower wheel brush.
• Can be fitted with a handy mobile stand.

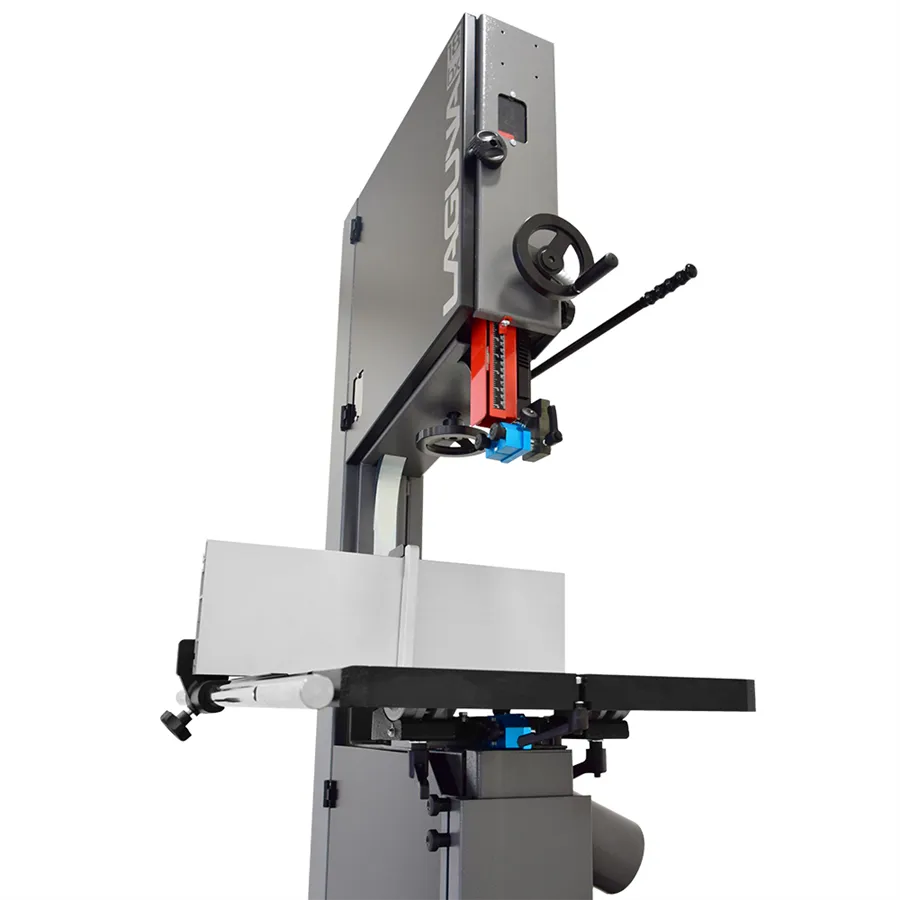

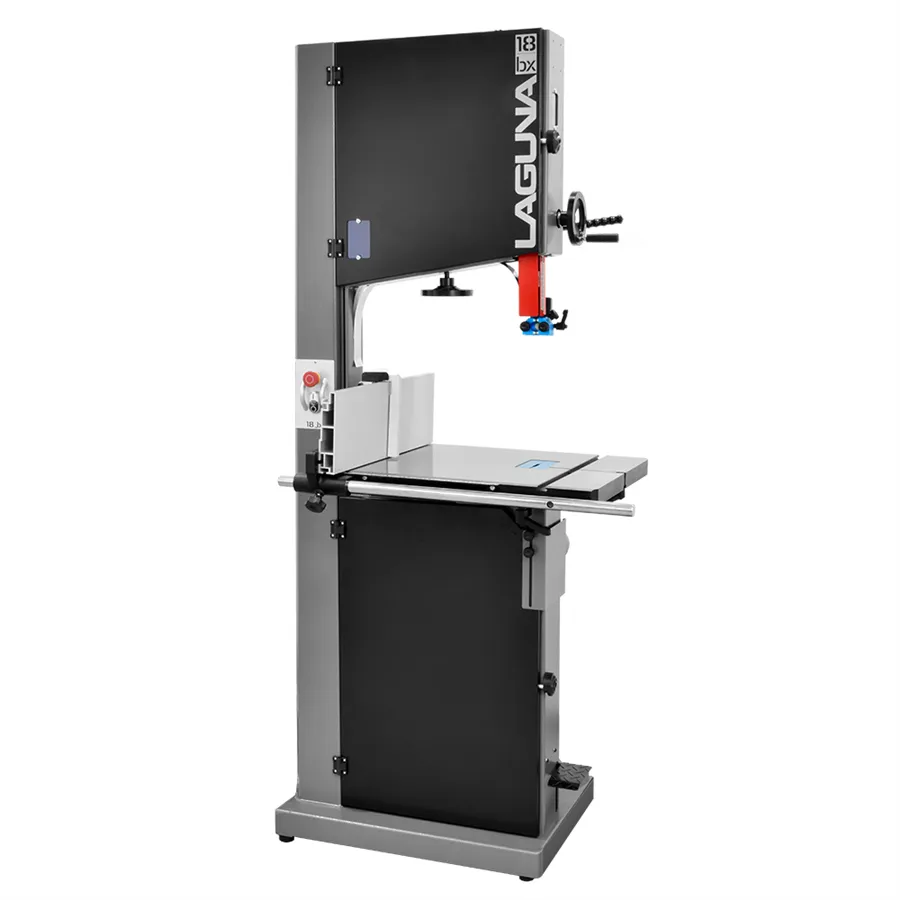

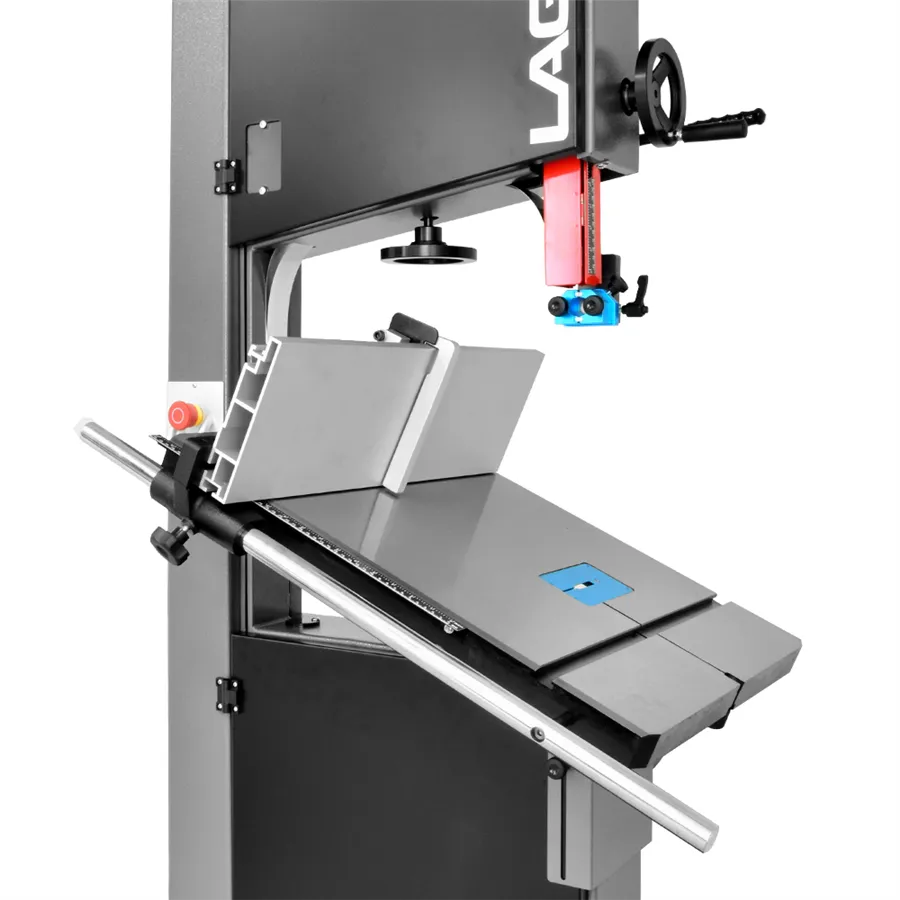

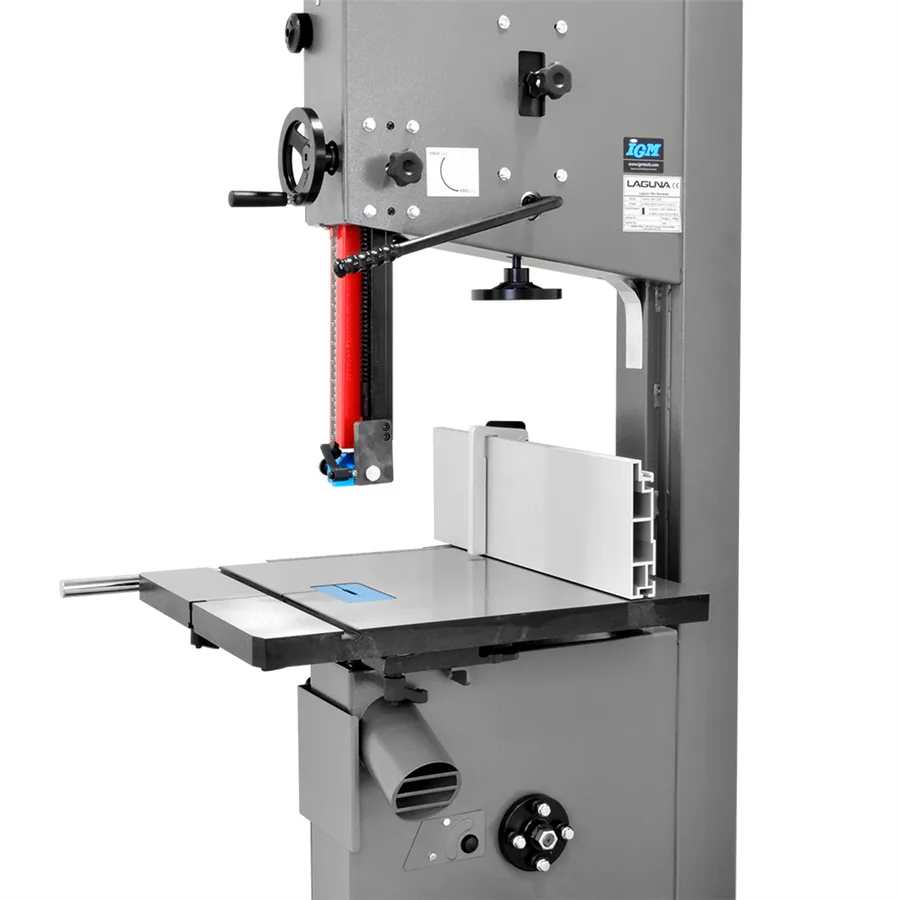

The IGM Laguna 18bx Bandsaw features a heavy robust frame with a powerful 2,2 kW motor. The ground cast alloy worktop 500 x 660 mm provides stability even for oversized workpieces. The table also tilts from -6° to +45°. The robust fence is easily adjustable and can be installed into two positions (vertical and horizontal). The strong cast alloy wheels are fitted with a polyurethane belt along the whole wheel. The belt is designed to withstand heat and for a longer service life than regular rubber belts. The worm gear & pinion on the blade guard is ultra-smooth and engineered to have minimum flex even when fully extended. Pressing the foot pedal firstly cuts power to the motor and secondly activates the disc brake to bring the saw to a virtually instantaneous stop.

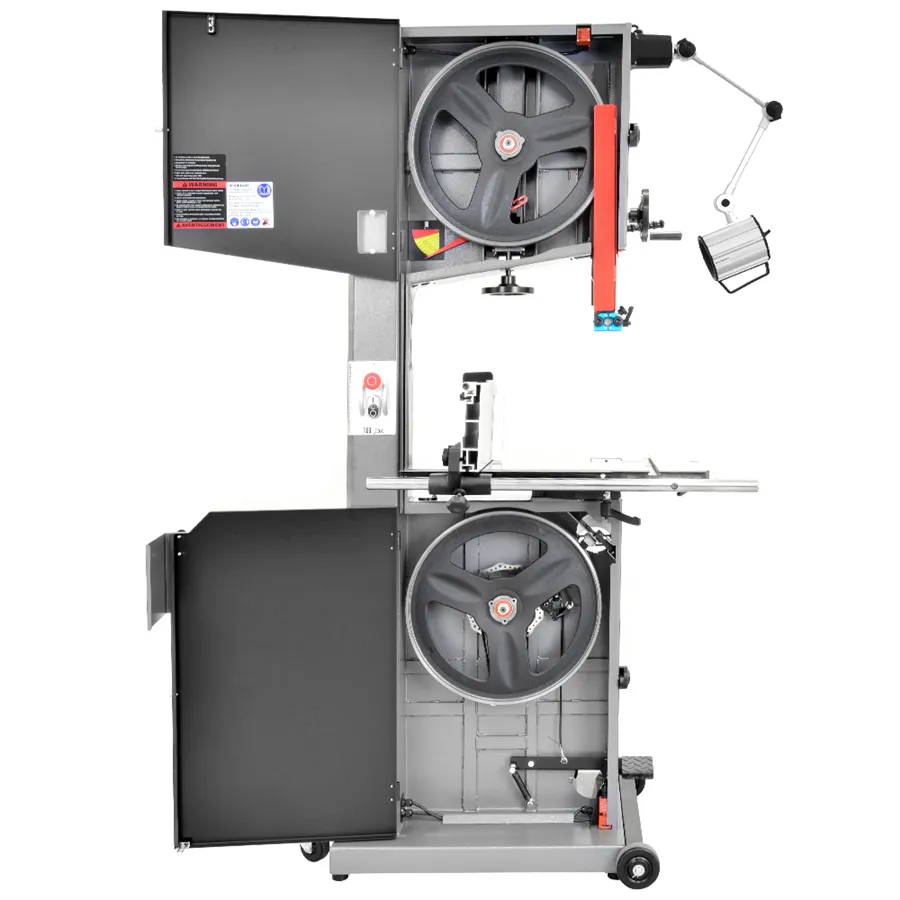

Fitted with ceramic guide system above and below worktop. Ceramic guides guide the blade accurately while securing ideal cut quality and prolonging the life of your belt. Double windows allow you to check both tension & tracking while the machine is running. A lever on the backside of the saw allows for quick tensioning and release of the belt. The Laguna 18bx stands out amongst other machines especially for its clever design that allows cuts up to 410 mm.
The band saw is fitted with all CE required safety features.
Comes partially assembled in a transport crate. Assembly time is approximately 1 hour.
• Type: Laguna 18bx
• Rating: Professional
• Power Output (400V): 2,2 kW
• Worktop: 508 x 660 mm
• Blade Length: 3695 mm
• Blade Width min. / max.: 3 / 31 mm
• Blade Speed: 965 m/min
• Height of Cut: 410 mm
• Max. Width of Cut to Fence: 400 mm
• Max. Width of Cut to Column: 460 mm
• Table Tilt: -6° to +45°
• Dust Extraction Outlet: 100 mm
• Length x Width x Height:: 759 x 919 x 1975 mm
• Weight: 186 kg
• Package Dimensions: 2070 mm x 650 mm x 850 mm
• Shipping Weight: 210 kg
Supplied with:
• Parallel fence
• Bandsaw blade Carbon FORCE HOOK – 16 x 0,8mm 4TPi
