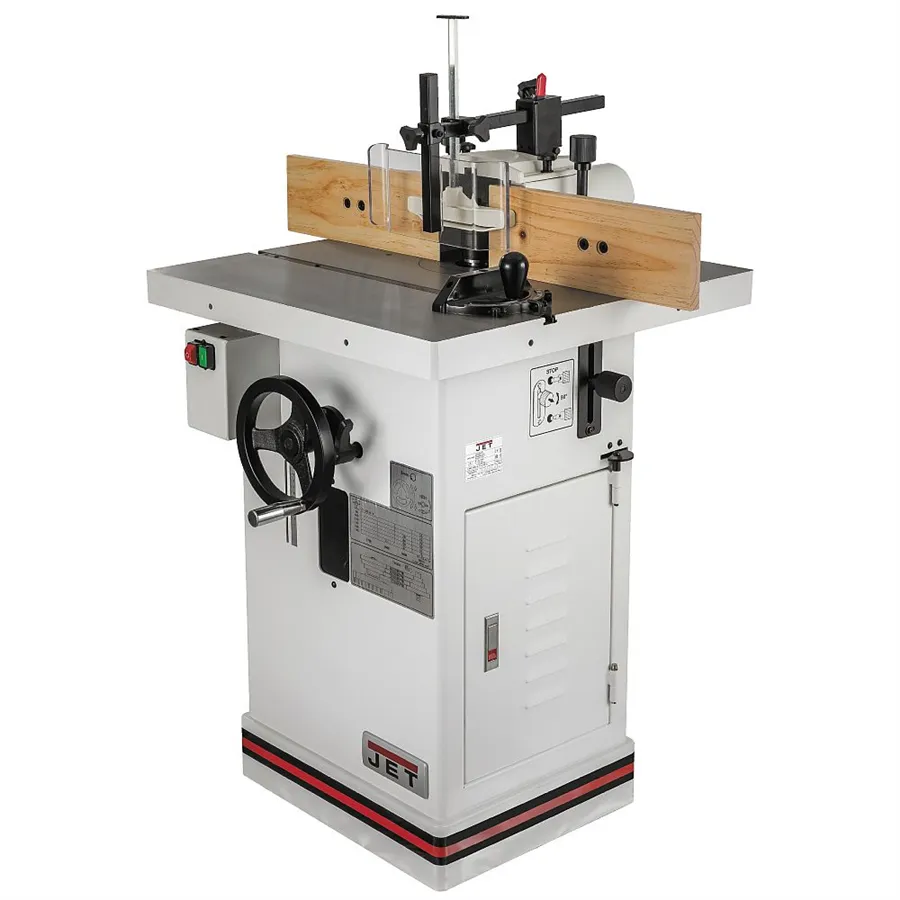

JET JWS-34KX Vertikalfräs 230/400V

• Fully adjustable fence.
• Collets 8 and 12 mm.

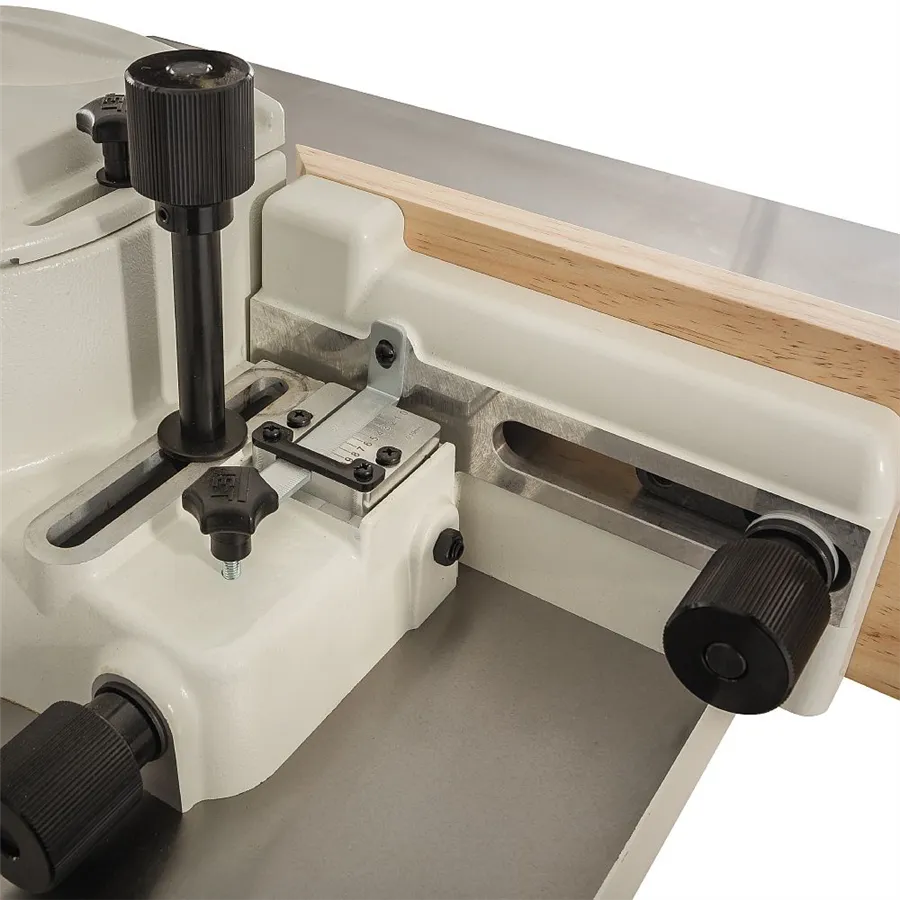

• Micro adjustment on the outfeed fence.

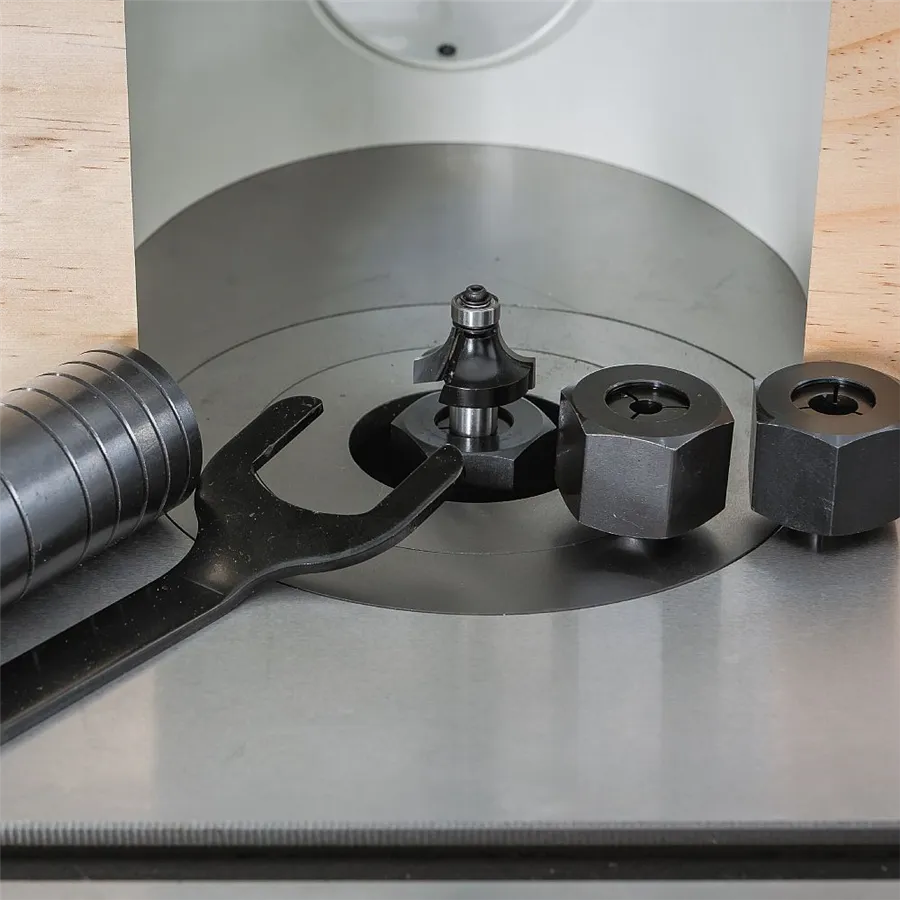

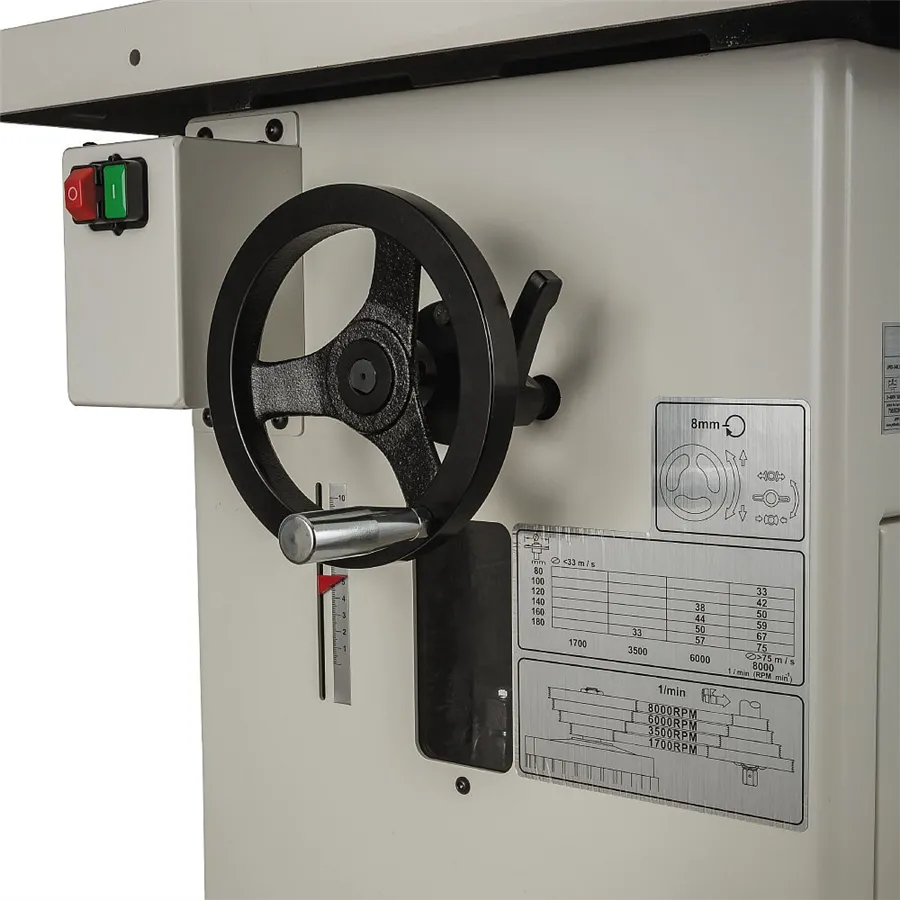

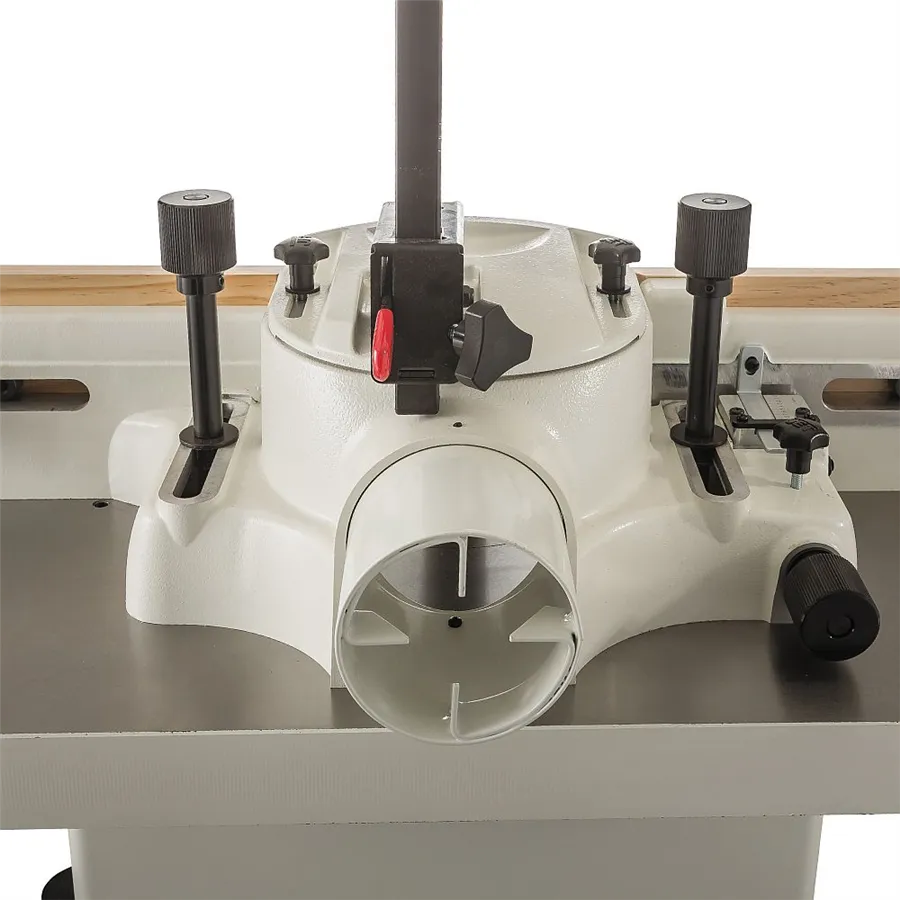

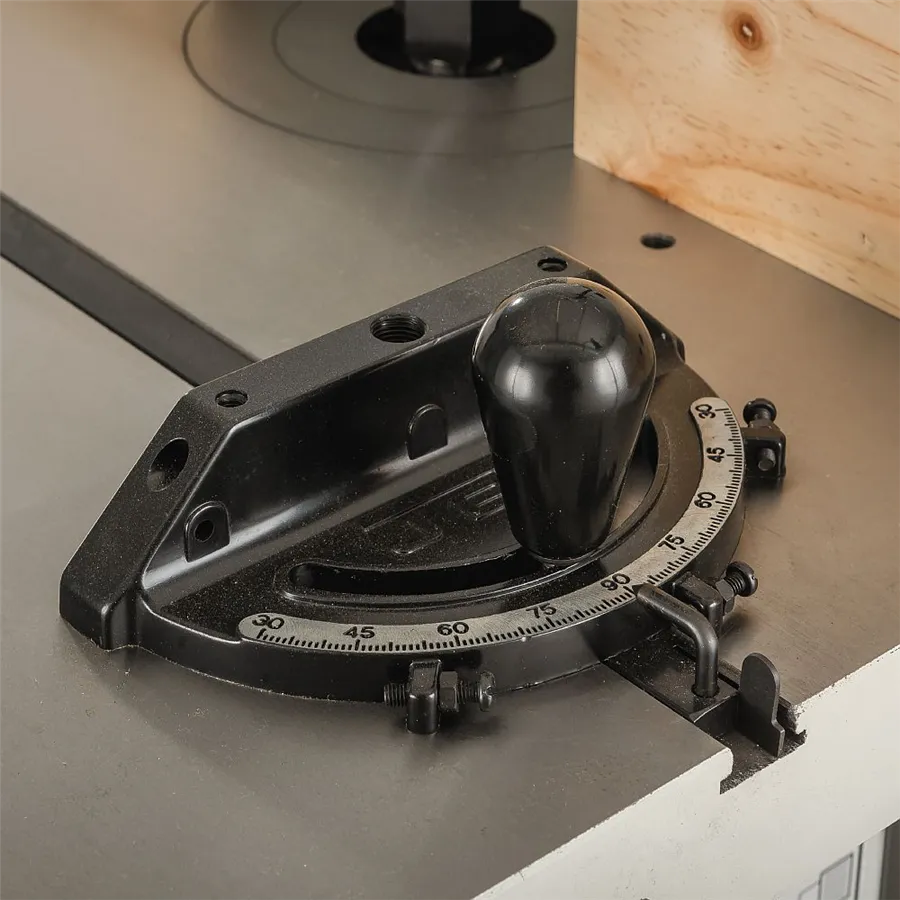

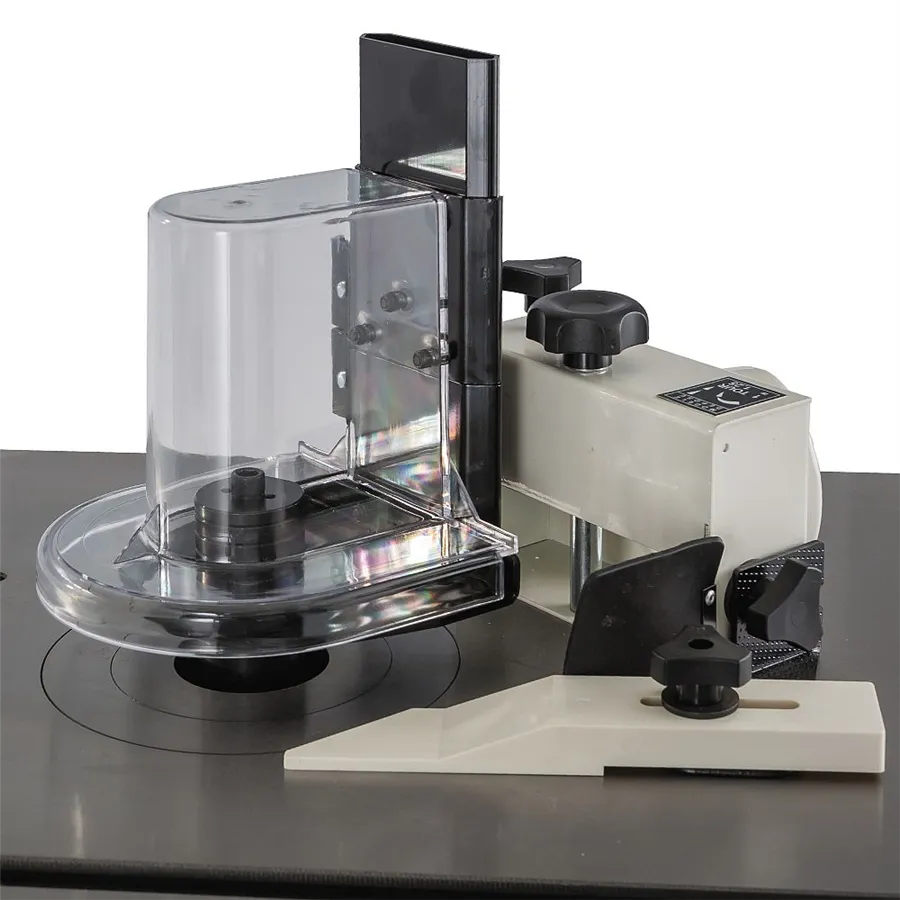

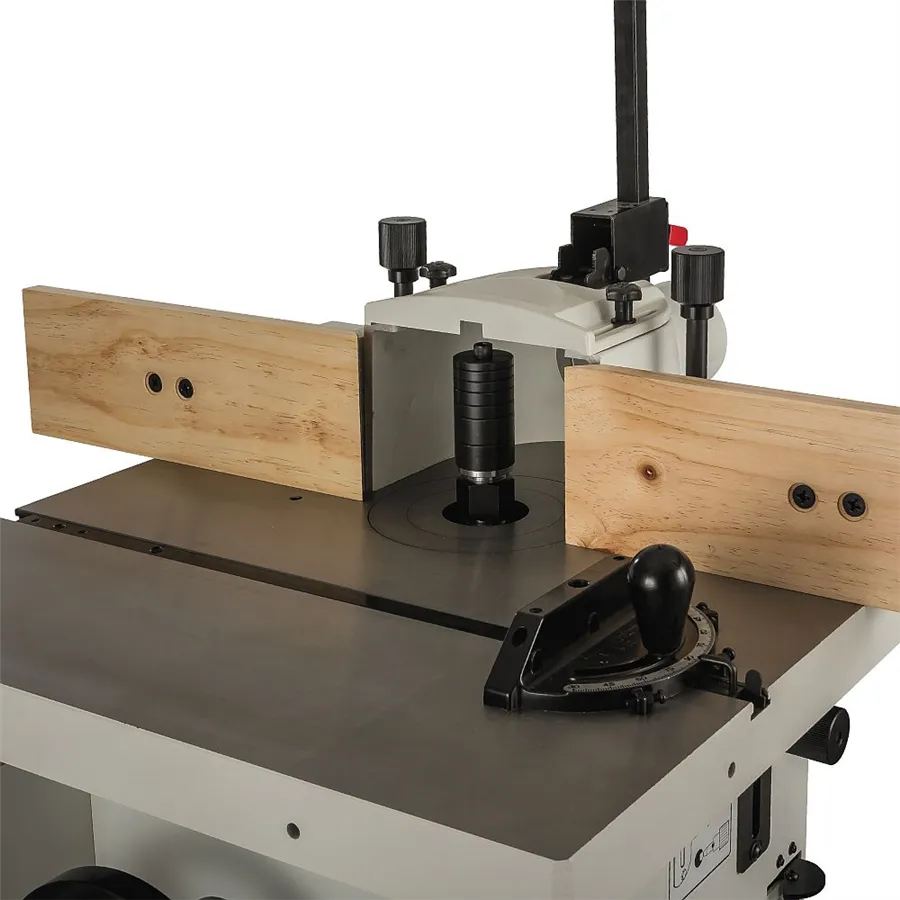

The JWS-34KX is a combination of two machines, a spindle moulder for cutter heads with a 30 mm spindle and a router table for router bits. The Router is fitted with two collets of 8 and 12 mm for various router bits. When used on its highest speed, it can utilise router cutters with a diameter of 35 mm or greater (smaller cutters simply would not have a high enough peripheral speed). The machine has a fully adjustable fence. As well as a micro adjustment fence on the outfeed and a 100 mm dust extraction outlet at the rear. Height adjustment is fitted on the front of the machine with a generous handle. Tooling changes can be speeded up with the aid of the spindle lock. For curved work, the moulder is supplied with a ring fence with its own integral 100 mm dust outlet. On the bed of the table is a T-slotted groove in which the mitre guide slides. Optionally fitted with a regular T-slot Fence.

• Type: JWS-34
• Rating: Professional
• Input / Output (230 V): 4,25 / 2,2 kW
• Speed: 1700, 3500, 6000, 8000 rpm
• Max. Tooling Diameter Above Table: 180 mm
• Max. Bit Clamping Height: 70 mm
• Max Spindle Projection Above Table: 120 mm

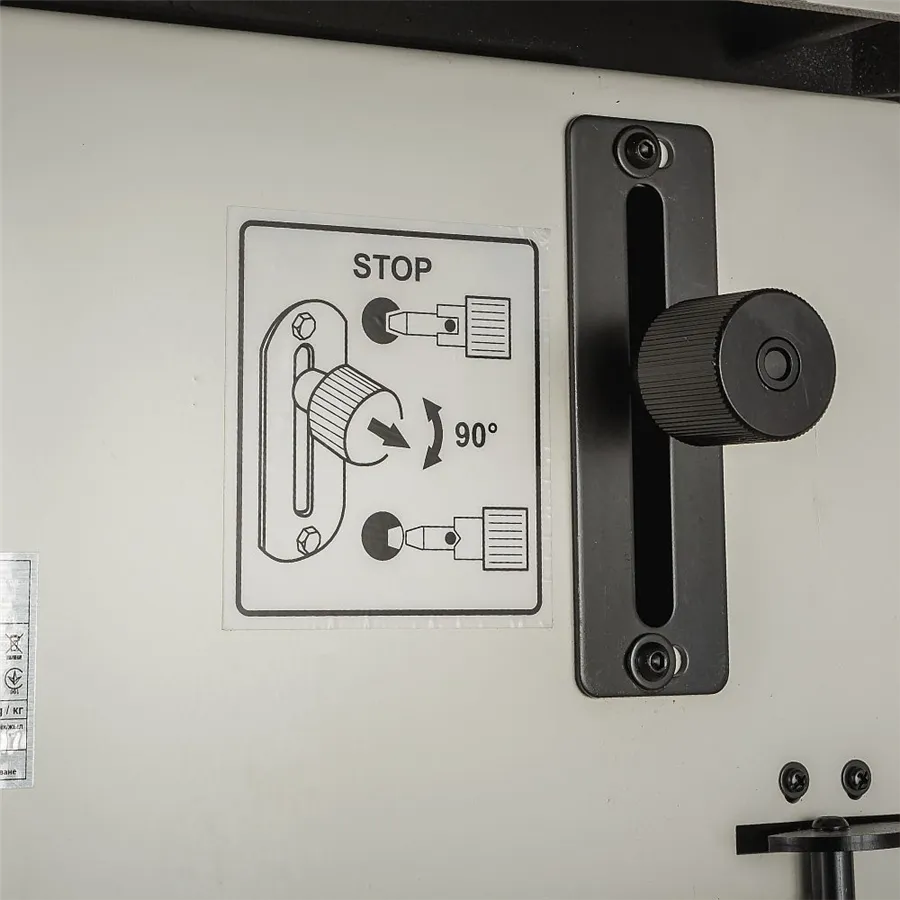

• Max Tooling Diameter Below Table: 160 mm
• Spindle Diamter: 30 mm
• Router Bit Bore Size: 8 a 12 mm
• Spindle Travel: 80 mm
• Table Height: 830 mm
• Table Size: 540 x 635 mm
• Dust Extraction: 120 (100 mm)
• Dimensions (LxWxH): 920 x 680 x 1090 mm
• Weight: 145 kg

Supplied with:
• Cast-iron worktop
• 30 mm combined spindle

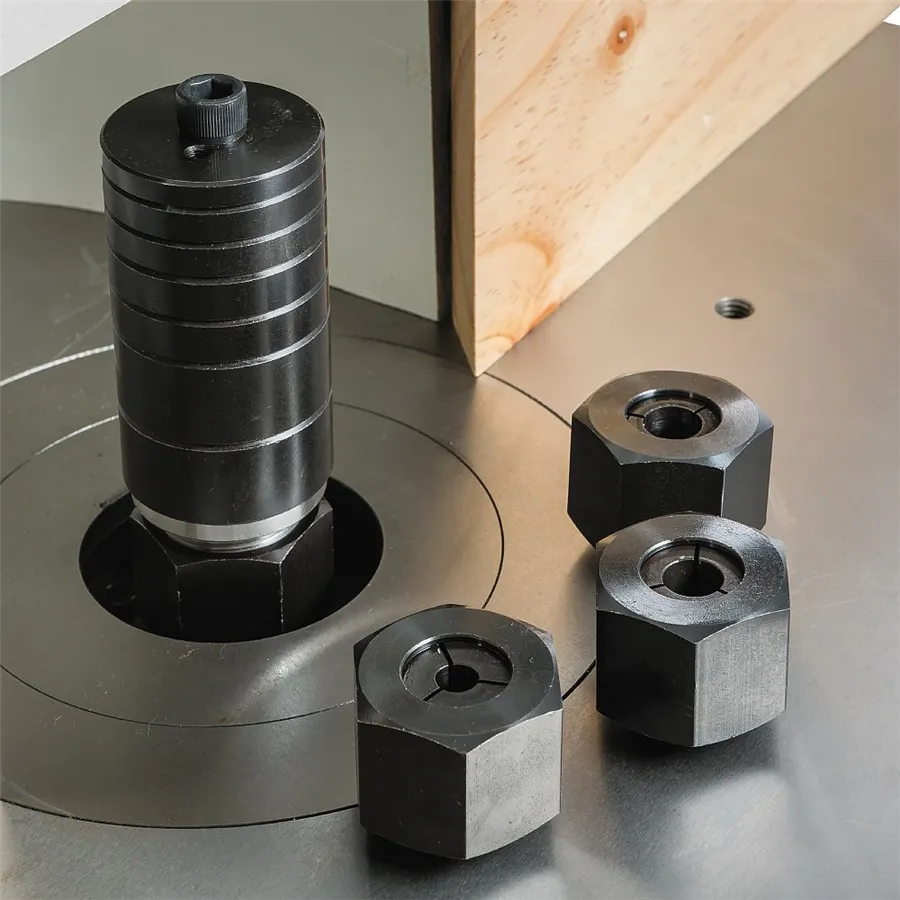

• 8 and 12 mm collets for router bits
• Micro adjustment fence
• Spindle opening spacer rings
• Visual reading of spindle speed
• Integral 100 mm dust outlet for curved work
